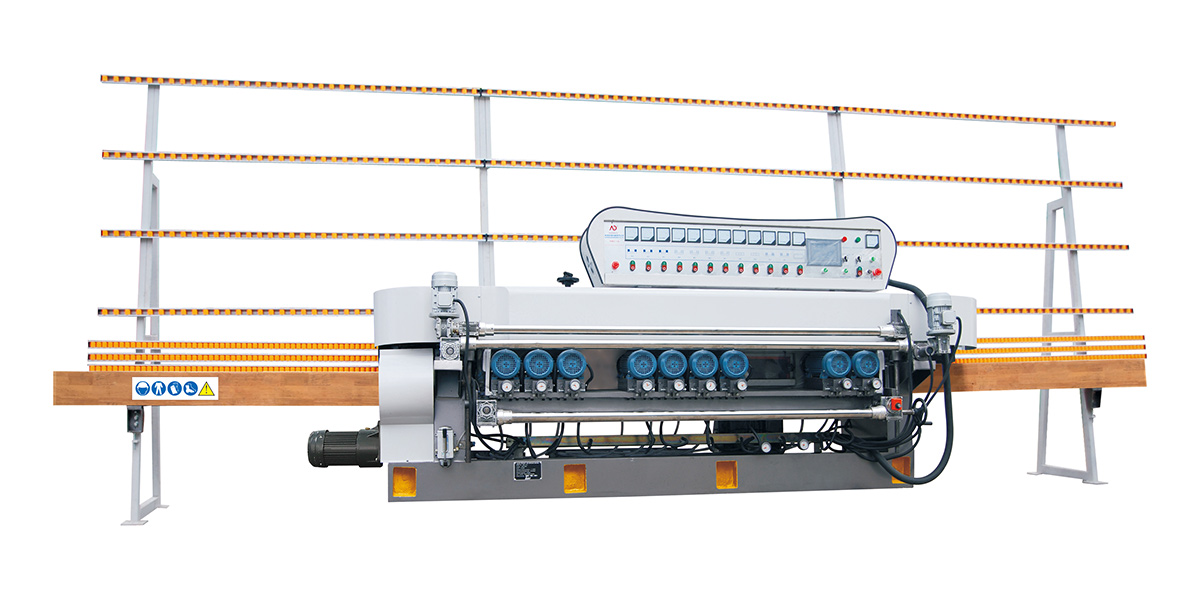

Automatic 11 Motors Beveling Machine
- Product Information
The automatic 11 motors beveling machine is a state-of-the-art industrial tool designed for precise beveling tasks. Equipped with 11 high-performance motors, it ensures smooth and accurate beveling on various materials. ADXM362A 11 motors beveling machine, using PLC to control glassprocessing thickness and angle, suitable for beveling various sizes flat glass. The coarse grinding, fine grinding, polishing and bottom edge process are finished at one time. Bottom edge polishing effect processed by two bottom arinders.The front pressing plates can be adjusted up and down according to the glass size. All the pressing plates are using with thicker steel plate, which make machine more stronger, transmit steadier and in higher working precision. And the working speed adjusted by continuously variable mechanism transmission, easy operation and high practicality. As a leading China 11 motors beveling machine factory, we specialize in advanced beveling machines that ensure precision and efficiency
Introduction:
ADXM362A 11 motor glass straight line beveling machine with PLC
1. Suitable for beveling various sizes flat glass.
2. The coarse grinding, fine grinding and polishing can be finished at one time.
3. The front pressing plate can be adjusted by lifting system according to glass size.
4. The pressing plates are using with thicker steel plate, which make machine more stronger, transmit steadier and in higher working precision.
5. Working speed can be adjusted at will by continuously variable mechanism transmission, this make operation very easy.
Technical Specifications:
| Item | Technical Specifications |
| Model Number | ADXM362A |
| Voltage | 380V/50Hz |
| Power | 24.5kw |
| Bevel angle | 0°-35° |
| Max bevel width | 40mm |
| Glass thickness | 3-19mm |
| Feeding speed | 0.5-7m/min |
| Min size | 30×30mm |
| Weight of machine | 4000kg |
| Overall size | 7300×2500×1300mm |

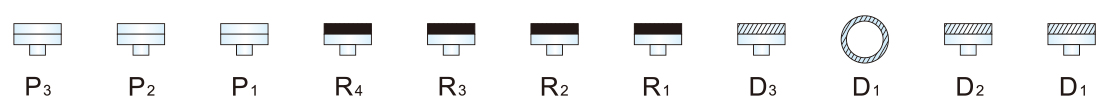

Position of Wheels:
Machine Detail:
1. CE machine & CE certification, PLC control system and digital displayer available.
2. Heavy duty foundation & beams: cast steel,annealing treatment.
3. Electric device: SIEMENS, Schneider or Delixi electrical optional.
4. ABB, XINDONGYA, SNY motor optional. 380V/50Hz, 380V/60Hz, 220V/60Hz, 400V/50Hz, 415V/50Hz, optional.
5. Thicken chain transmission system, can loading 600kg big size thick glass; Beveling machine equipt synchronous belt PU chain transmission system.
6. Various high quality import grinding wheels. Suit for grind mirror, mosica, spell mirror,Low-e glass, float glass, laminated glass, tempered glass, etc.
Guarantee And After-sale Service:
One year guarantee for whole machine.
24 hours technical support by e-mail.
Ues-friendly English software,use manual and detailed Videos/CD.
We will provide all spare parts needed for maintenance of the equipments.
Professional after-sales service team support face-to-face training and installation to customer's factory.
