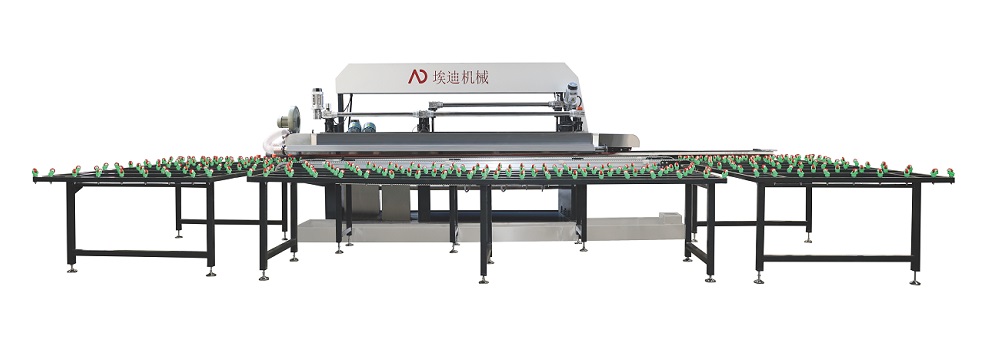

Horizontal Glass Edge Grinding Machine is a kind of equipment used for glass processing, mainly used for grinding, chamfering, polishing and other processes on the glass edge. It can efficiently process the glass edge through horizontal grinding to ensure the dimensional accuracy and appearance quality of the glass. This equipment is widely used in the glass processing industry and is an indispensable and important equipment in the glass production process. Its core advantage is that it can achieve high-precision and high-efficiency glass processing to meet the strict requirements of different industries for glass products.

Horizontal Glass Edge Grinding Machine Specifications:

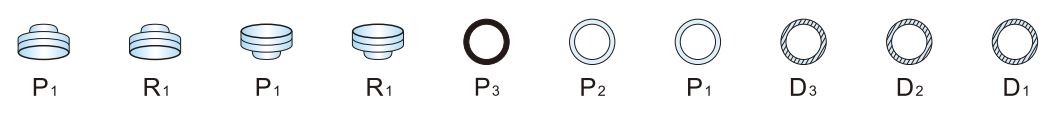

Horizontal Glass Edge Grinding Machine Position of Wheels:

Horizontal Glass Edge Grinding Machine Features:

1. High-efficiency grinding capability

The 10 Motors 45 Degree Horizontal Glass Edge Grinding Machine is driven by 10 motors and can simultaneously complete a variety of processes such as rough grinding, fine grinding, chamfering and polishing. Its maximum processing width can reach 3000mm×1800mm, which is suitable for processing large-size glass. The grinding speed is controlled by frequency conversion speed regulation and can be adjusted according to the thickness of the glass, ranging from 0.5-5m/min to ensure processing efficiency and quality. This efficient design enables the equipment to significantly improve production efficiency when processing large areas of glass and meet the needs of large-scale production.

2. High-precision processing

The 10 Motors 45 Degree Horizontal Glass Edge Grinding Machine adopts a PLC control system, which can accurately adjust the thickness and angle of the glass, and the processing accuracy can reach 0.01mm. Its glass thickness processing range is 3-25mm, which can meet the processing needs of glass of different specifications. The chamfer angle can be adjusted in the range of 0°-45° to ensure the flatness and beauty of the glass edge. The high-precision processing capability enables the equipment to meet the strict requirements of high-end glass products and is suitable for industries such as construction and automobiles that have extremely high quality requirements.

3. Multifunctional integration

The 10 Motors 45 Degree Horizontal Glass Edge Grinding Machine integrates multiple functions in one, and can complete the rough grinding, fine grinding, chamfering and polishing processes of glass at one time, without the need to change the equipment many times, which greatly improves production efficiency. Its drilling diameter range is Ф5-Ф80mm, which can meet different process requirements. This multifunctional integrated design not only saves production time and labor costs, but also improves the versatility and flexibility of the equipment, and is suitable for a variety of glass processing scenarios.

4. Safe and reliable design

The 10 Motors 45 Degree Horizontal Glass Edge Grinding Machine is designed with full consideration of operational safety, and is equipped with an emergency stop switch and protective devices to ensure the safety of the operator. Its overall weight is 3600kg, and its dimensions are 9000×1700×4000mm. It has a stable structure, smooth operation, and can work stably for a long time. The safe and reliable design makes the equipment more assured during operation, reduces the occurrence of accidents, and ensures the safety of the production environment.

5. Easy to operate

The 10 Motors 45° Horizontal Glass Edge Grinding Machine adopts a humanized design, with a simple and clear operation interface and easy to use. Its control system is operated through a touch screen, and parameter settings are convenient and quick. The feeding speed and grinding speed of the equipment can be adjusted by the frequency converter, and the operation is flexible. This easy-to-operate design enables the equipment to quickly adapt to the usage habits of different operators, reduce training costs, and improve production efficiency.

6. Energy-saving and efficient

The power of the 10 Motors 45° Horizontal Glass Edge Grinding Machine is 28kW. It uses a high-efficiency motor and energy-saving control system, which can reduce energy consumption while ensuring processing efficiency. Its voltage is 380V/50HZ, which meets the industrial electricity standards and has low operating costs. The energy-saving and efficient design enables the equipment to significantly reduce energy consumption in long-term operation, saving operating costs for enterprises.

7. Strong adaptability

10 Motors 45° Horizontal Glass Edge Grinding Machine can adapt to the processing needs of glass of different thicknesses and sizes, with a minimum processing size of 100×100mm and a maximum processing size of 3000×1800mm. Whether it is small glass products or large glass panels, they can be processed efficiently. This strong adaptability enables the equipment to meet a variety of glass processing scenarios, from architectural glass to decorative glass.

8. Easy maintenance

10 Motors 45° Horizontal Glass Edge Grinding Machine has a reasonable structural design, and key components are easy to disassemble and maintain. Its motor and transmission components are made of high-quality materials and have a long service life. Regular maintenance ensures long-term and stable operation of the equipment. The maintenance-friendly design makes equipment maintenance easier, reduces downtime, and improves equipment availability.

Horizontal Glass Edge Grinding Machine Application:

1. Architectural glass processing

10 Motors 45 Degree Horizontal Glass Edge Grinding Machine is widely used in architectural glass processing. It can chamfer, grind and polish the edges of glass to ensure the beauty and safety of the glass after installation. Its high-precision processing capabilities can meet the strict requirements of the construction industry for glass quality. In the field of construction, the equipment can efficiently process large areas of glass, such as curtain wall glass, door and window glass, etc., to improve the overall quality and beauty of the building.

2. Automobile glass manufacturing

In automotive glass manufacturing, the Horizontal Glass Edge Grinding Machine can be used to process automotive windshields, side window glass, etc. It can accurately control the thickness and edge quality of the glass to ensure the optical performance and structural strength of the glass. The high precision and versatility of the equipment enable it to meet the strict standards of automotive glass and ensure the safety and stability of the glass during driving.

3. Home appliance glass processing

Horizontal Glass Edge Grinding Machine can be used to process home appliance glass, such as refrigerator glass, TV glass, etc. Its multifunctional integrated design can efficiently complete the glass processing technology and improve production efficiency. In the home appliance industry, the equipment can ensure the appearance quality and dimensional accuracy of glass, and improve the overall quality and user experience of home appliance products.

4. Decorative glass production

In decorative glass production, 10 Motors 45° Horizontal Glass Edge Grinding Machine can be used to process glass of various shapes and sizes, such as round, square, irregular shapes, etc. It can complete the chamfering, edge grinding and polishing processes of glass to enhance the decorative effect of glass. The high precision and versatility of the equipment enable it to meet the diverse needs of decorative glass and create beautiful and unique decorative effects.

5. Furniture glass processing

Horizontal Glass Edge Grinding Machine can be used to process furniture glass, such as coffee table glass, dining table glass, etc. Its high-precision processing capability ensures the flatness and beauty of the glass edge and improves the overall quality of furniture. In the furniture industry, the equipment can efficiently process glass of different sizes to meet the diverse needs of furniture design.

6. Glass crafts manufacturing

10 Motors 45° Horizontal Glass Edge Grinding Machine can be used to process glass crafts, such as glass sculptures, glass lamps, etc. It can complete complex glass edge processing processes and meet the high-precision requirements of handicraft manufacturing. In the field of handicraft manufacturing, the high precision and versatility of the equipment enable it to create exquisite glass handicrafts and enhance the artistic value and market competitiveness of the products.

Horizontal Glass Edge Grinding Machine Maintenance:

1. Daily cleaning and inspection

After using the 10 Motors 45° Horizontal Glass Edge Grinding Machine every day, wipe the surface of the equipment with a soft cloth to remove dust and glass debris. Check whether the fasteners of the equipment are loose. If they are loose, tighten them in time. Check the lubrication system of the equipment regularly to ensure that the lubricating oil is sufficient and clean. Daily cleaning and inspection are the basis of equipment maintenance. They can detect potential problems in time, avoid small problems from turning into major failures, and extend the service life of the equipment.

2. Motor maintenance

Regularly check the operating status of the motor to ensure that there is no abnormal sound and overheating of the motor. The motor should be cleaned and lubricated regularly. It is recommended to perform deep cleaning and lubrication once a quarter. If the motor is found to be running abnormally, contact professional maintenance personnel for inspection in time. The motor is the core component of the equipment. Regular maintenance can ensure its efficient operation and avoid equipment downtime due to motor failure.

3. Grinding wheel replacement and adjustment

The grinding wheel is a key component of the Horizontal Glass Edge Grinding Machine. The wear of the grinding wheel should be checked regularly. When the grinding wheel is severely worn, it should be replaced in time. When replacing the grinding wheel, ensure that the grinding wheel is installed correctly and balanced to ensure processing accuracy. Correct replacement and adjustment of the grinding wheel is the key to ensuring processing quality and can avoid processing errors caused by grinding wheel wear.

4. Transmission system maintenance

Regularly check the transmission system of 10 Motors 45 Degree Horizontal Glass Edge Grinding Machine, including belts, gears, chains and other components. If there is wear or looseness, it should be replaced or adjusted in time. The transmission system should be lubricated regularly, and it is recommended to perform lubrication maintenance once a month to extend its service life. Good maintenance of the transmission system can ensure the smooth operation of the equipment and avoid processing interruptions caused by transmission component failure.

5. Control system inspection

Regularly check the control system of Horizontal Glass Edge Grinding Machine, including components such as PLC, touch screen and sensors. Ensure that the control system operates normally and there is no fault alarm. If the control system is found to be abnormal, contact professional technicians for maintenance in time. The stable operation of the control system is the guarantee of efficient operation of the equipment, which can ensure the accuracy of processing parameters and the automatic operation of the equipment.

6. Regular maintenance and care

The equipment should be fully maintained, and it is recommended to be performed every six months. The maintenance content includes: cleaning the inside of the equipment, checking the electrical circuit, replacing wearing parts, calibrating processing parameters, etc. Regular maintenance can effectively extend the service life of the equipment and improve processing accuracy and efficiency. Comprehensive regular maintenance can ensure that the equipment is always in the best operating state, reduce unexpected downtime, and improve production efficiency.
